304 Stainless Steel Button Head Bolts with Hex Drive and Full Thread M6-M24 for Marine Use

Mô tả

What are Button Head Bolts?

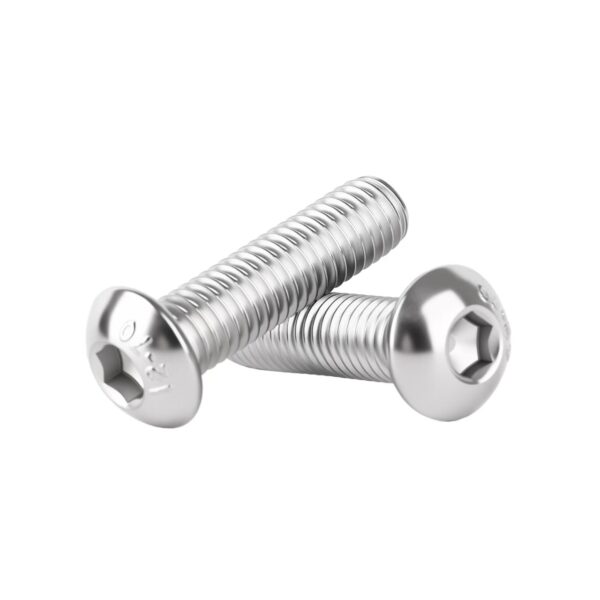

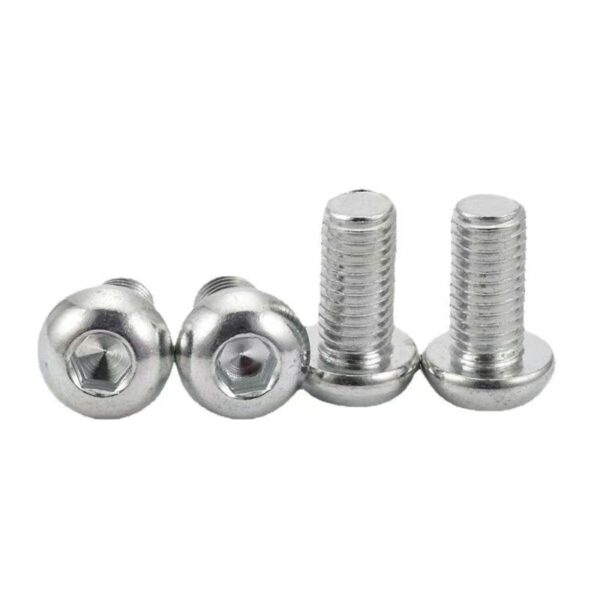

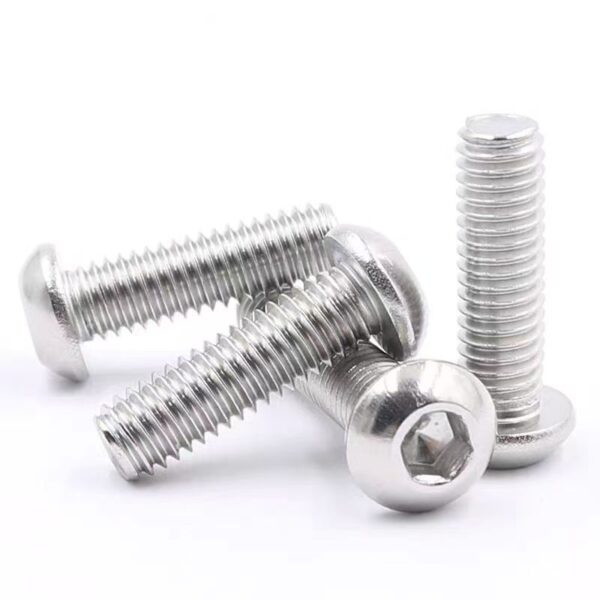

Button head bolts feature a low-profile, dome-shaped head with internal hex socket drive, combining aesthetic appearance with positive wrench engagement. Common reference standards include DIN 7380 and ISO 7380. Unlike socket head cap screws, the rounded button head distributes stress more evenly and presents a smoother exterior surface, ideal for applications where appearance matters or head height restrictions apply.

Material

• Stainless Steel: A2-70 (70,000 psi tensile, equivalent to 304 grade) delivers general corrosion resistance for food processing, medical, and architectural applications. A4-80 (80,000 psi tensile, equivalent to 316 grade) provides enhanced resistance to chlorides and marine environments.

• Carbon Steel: Property classes 8.8 (800 MPa tensile) and 10.9 (1040 MPa tensile) offer higher strength when applications demand load capacity beyond stainless steel capabilities.

• Alloy Steel: Class 12.9 meets extreme strength requirements for racing, aerospace, and high-performance machinery where weight reduction drives material selection.

Surface Finishes

• Zinc Plated: Delivers 48+ hours salt spray protection. First choice for carbon steel button heads in general industrial applications.

• Passivated: Enhances stainless steel’s natural oxide layer, maximizing corrosion resistance without altering appearance.

• Black Oxide: Provides cosmetic dark finish for stainless steel or carbon steel. Spec for automotive and tooling applications where reduced light reflection matters.

• Plain (Uncoated): Standard for stainless steel; specify for food contact surfaces or clean room environments.

• Electropolished: Creates mirror-like finish on stainless steel, improving corrosion resistance and cleanability for pharmaceutical and semiconductor applications.

Specification Parameters

• Diameter: M3 through M16 metric; #4 through 5/8-inch imperial

• Length: 6mm to 100mm metric; 1/4-inch through 4-inch imperial

• Head Diameter: Approximately 2x shank diameter, providing broad bearing surface

• Head Height: Low-profile design, typically 0.5x to 0.7x shank diameter

• Drive Size: Hex socket sizes from 2mm to 10mm metric; 5/64″ to 3/8″ imperial

• Thread: Coarse thread standard; fine thread available for vibration-sensitive applications

Vertical Application Scenarios

Medical Device Assembly: Button head bolts secure housings on diagnostic equipment where smooth surfaces facilitate cleaning and sterilization. The rounded head eliminates bacterial traps found in recessed drive designs, meeting FDA sanitation requirements.

Food Processing Machinery: Stainless steel button heads fasten guard panels and access covers in meat processing plants. The low-profile dome prevents food particle accumulation, and the hex drive allows quick removal for daily washdown cycles.

Solar Panel Mounting: Outdoor tracking systems use button head bolts for module clamps and frame connections. The smooth head sheds water and debris, while stainless steel construction withstands UV exposure and temperature cycling without corrosion.

Consumer Electronics Enclosures: Button head bolts assemble aluminum enclosures for audio equipment and instrumentation. The aesthetic head complements modern industrial design, and the hex drive enables precise torque control during final assembly.

Customer Case

Situation: A medical equipment manufacturer faced contamination issues in MRI machine enclosures. Standard socket head cap screws collected dust and biological material in their sharp corner junctions, complicating sterilization protocols between patients.

Task: Engineering required a fastening solution with smooth, cleanable exterior surfaces that maintained full clamping strength and allowed repeated access for maintenance.

Action: Supplied M6 x 20mm button head bolts, A2-70 stainless steel, passivated, with 5mm hex drive. The rounded dome eliminated crevice accumulation points. Passivation enhanced corrosion resistance through repeated sterilization cycles.

Result: The sterilization team reported 40% faster cleaning times for enclosure surfaces. Infection control audits confirmed elimination of biological material entrapment around fastener locations. The manufacturer now specifies button head bolts across all patient-contact equipment lines.
