Custom Superior ER Collet Nut Stainless Steel Nut for ER16 Collet Holder

Description

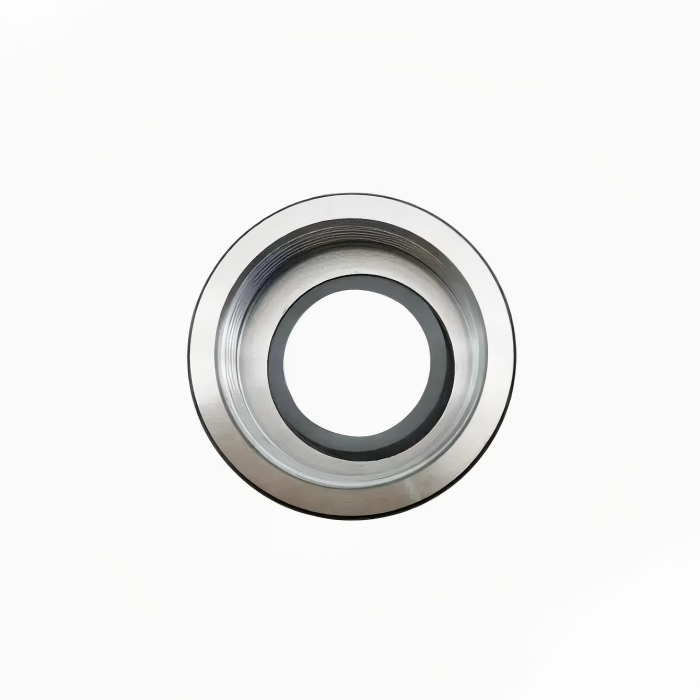

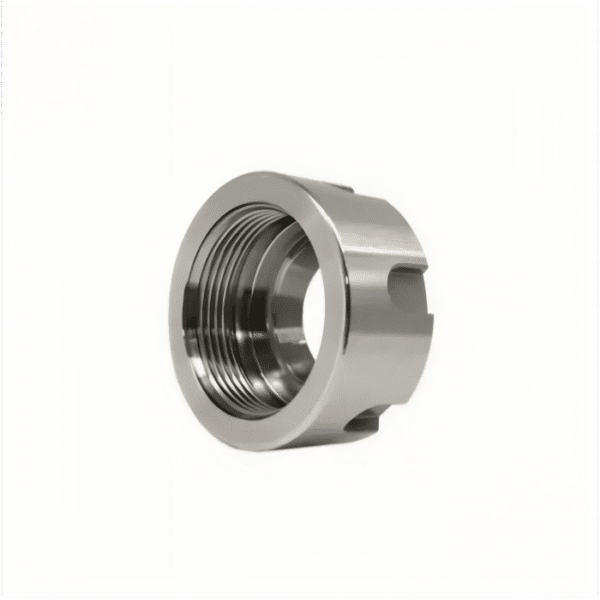

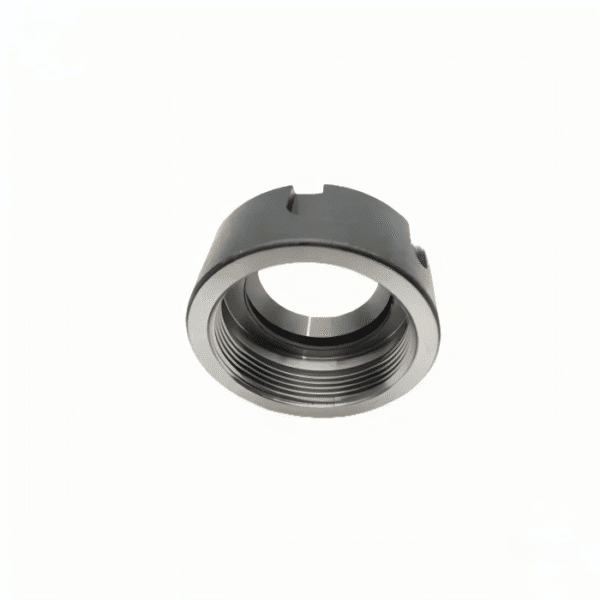

What Is an ER Collet Nut?

An ER collet nut is a threaded component that fits over an ER collet and screws onto a collet chuck or spindle to compress the collet around a cutting tool. When tightened, the nut presses the collet against a precision ground taper inside the spindle, aligning the tool with the axis of rotation and securely gripping the tool shank.

They are not simple threaded caps—they incorporate clever design features that improve usability. Inside the nut, an off-center retention ring traps the collet, ensuring it moves in and out of the spindle taper in unison as the nut is tightened or loosened. This prevents collets from becoming wedged inside the spindle.

High-performance ER collet nuts may also feature dynamic balancing features such as small dimples drilled around the perimeter to reduce vibration at high spindle speeds.

Why Choose Custom CNC Machined ER Collet Nuts?

Off-the-shelf ER collet nuts may not always provide the precision, balance, or material properties your application demands. Standard nuts may lack the vibration resistance needed for high-speed machining or the corrosion protection required for demanding environments. Custom CNC machined ER collet nuts provide the perfect solution.

With CNC machining, every aspect of this product can be customized to your exact specifications. The ER series can be selected from ER8, ER11, ER16, ER20, ER25, ER32, ER40, or ER50. The material can be chosen from high-strength steel alloys (42CrMo, 20CrMnTi) for durability and wear resistance. Hardness can be specified to HRC 50-58 for long service life. Precision grades can be selected from standard to ultra-precision with runout as low as 0.005mm. Dynamic balancing can be specified for high-speed spindles. Surface treatments such as black oxide, nickel plating, or coating can be applied for corrosion resistance and reduced friction.

Our CNC machining process ensures that each ER collet nut achieves tight tolerances, with excellent surface finish and consistent quality across every part, from prototypes to high-volume production runs.

ER Collet Nut Types:

Standard Type (A Type):

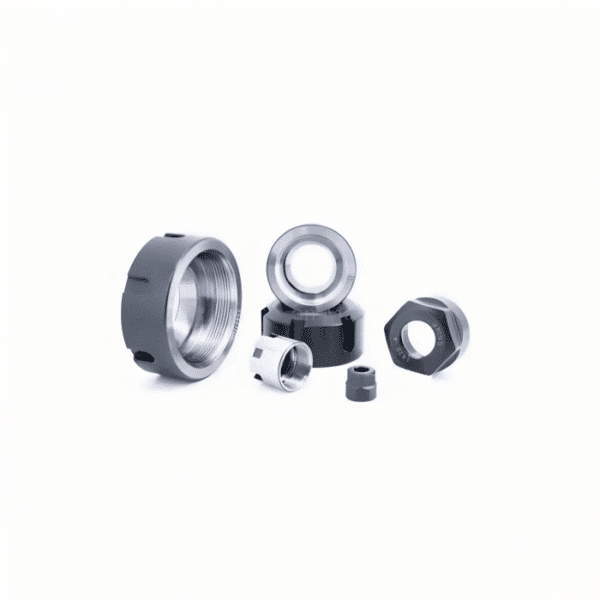

Standard ER collet nuts feature a threaded interior that matches the collet chuck thread and a tapered seat that compresses the collet. Available in all ER series from ER8 to ER50.

M Type:

M type nuts have a smaller diameter thread for applications where space is limited. Available in ER8-M, ER11-M, ER16-M, ER20-M, ER25-M, and others.

UM Type (Ultra Miniature):

UM type nuts offer an even smaller profile than M type for compact tool holding applications. Available in ER25-UM, ER32-UM, ER40-UM, and ER50-UM.

High Precision Balanced Nuts:

Designed for high-speed machining, these nuts feature dynamic balancing and reduced runout for superior concentricity.

Applications of Custom ER Collet Nuts:

CNC Milling:

ER collet nuts secure end mills, face mills, and other cutting tools in vertical and horizontal machining centers. High precision nuts ensure accurate tool concentricity for tight tolerance parts.

CNC Engraving:

Small ER series nuts (ER8, ER11) are commonly used in engraving machines and CNC routers where fine detail and minimal runout are critical.

Drilling and Tapping:

ER collet nuts provide secure clamping for drill bits, taps, and reamers in drilling and tapping operations.

High Speed Machining:

Balanced ER collet nuts enable stable tool holding at high spindle speeds, reducing vibration and extending tool life.

Our CNC Machining Capabilities:

Our facility is equipped with advanced CNC turning and milling centers capable of producing ER collet nuts to the highest standards. We offer precision thread cutting, surface hardening, balancing, and finishing services. We support prototype quantities as low as one piece and production runs of thousands.
