Triangle Round Head Machine Screws Triangle Pan Head Inner Trigroove Anti Theft Security Screw

Beschrijving

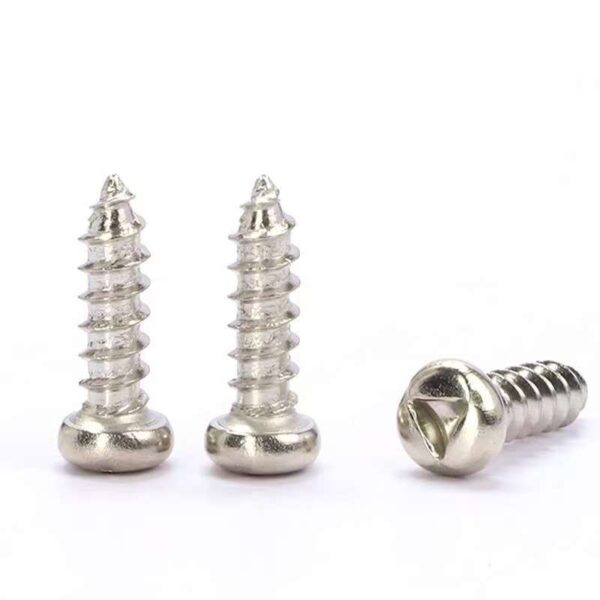

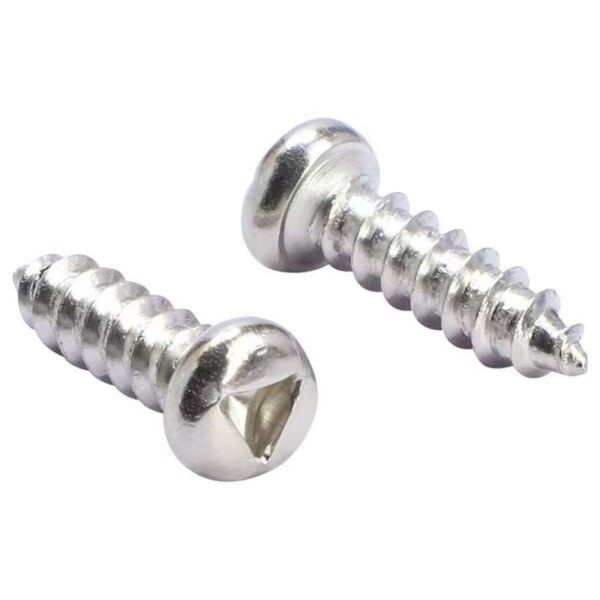

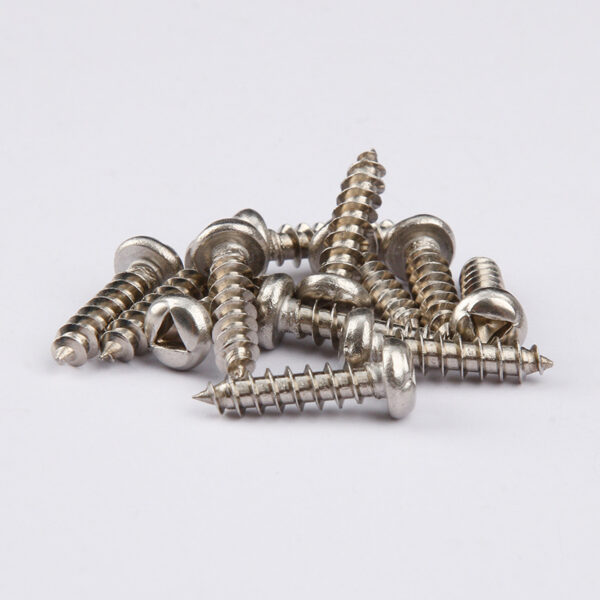

What Are Triangle Round Head Machine Screws?

A Triangle Round Head Machine Screw is a specialized fastener that combines two distinct features. First, it has a round (or domed) head that sits above the material surface, offering a finished appearance. Second, and most defining, is its triangular drive recess—a three-sided socket in the head designed to be turned only by a matching triangular screwdriver bit.

This design is primarily tamper-resistant or tamper-proof. The unusual triangular drive discourages casual disassembly or unauthorized removal, as standard flathead, Phillips, or hex tools are ineffective. Unlike slotted or Phillips heads, the triangular recess also offers good resistance to the driver “camming out” or slipping during tightening. They are considered a type of machine screw, meaning they are typically designed to be used with a pre-tapped nut or threaded hole.

Materials of Triangle Round Head Machine Screws

These screws are manufactured from various materials to suit different strength, corrosion resistance, and environmental needs.

• Carbon Steel: The most common and economical material, often used for general industrial applications.

• Stainless Steel (e.g., Grades 304, 316): Provides excellent corrosion resistance and durability. It is preferred for outdoor, marine, or high-moisture environments.

• Brass: Offers good corrosion resistance, is non-magnetic, and has an attractive appearance. Commonly used in electrical fittings, locks, and decorative applications.

• Alloy Steel: Used for high-strength applications and can be heat-treated to achieve higher property grades.

Surface Finishes of Triangle Round Head Machine Screws

Surface treatments enhance appearance, prevent corrosion, and sometimes add a layer of wear resistance.

• Zinc Plating (clear, yellow, blue): The most common finish for carbon steel screws, providing a basic level of rust protection.

• Nickel Plating: Offers a bright, silvery appearance and good corrosion resistance.

• Passivation: A chemical treatment for stainless steel to enhance its natural corrosion-resistant oxide layer.

• Polished/Bright Finish: Often used on brass or stainless steel screws for a clean, decorative look.

Specifications of Triangle Round Head Machine Screws

Key specifications for identifying these screws include:

• Drive Type: Triangular recess (Tamper-Resistant Triangle).

• Head Style: Round head (also referred to as dome head).

• Thread Type: Machine screw threads (Unified or Metric), which can be coarse (e.g., 24 threads per inch) or fine (e.g., 32 threads per inch). Some variants may have self-tapping threads.

• Diameter & Length: Sizes widely available from small diameters like M3 (approx. 3mm) upwards, with lengths customizable for the application.

• Standards: Can be manufactured to meet various industry standards (e.g., DIN, ISO).

Application Fields of Triangle Round Head Machine Screws

Their primary use is in security-sensitive and tamper-proof applications, but they also serve general fastening needs where their unique drive is beneficial.

• Public Infrastructure & Furniture: Securing fixtures in restrooms, parks, transit systems, and public seating to prevent vandalism or theft.

• Electronics & Appliances: Used in consumer electronics, battery compartments, and appliances to discourage user disassembly and meet safety standards.

• Industrial Machinery: Securing guards, panels, and components on factory equipment where unauthorized access is a safety or operational concern.

• Electrical & Security Hardware: Ideal for securing electrical enclosures, junction boxes, and security locks.

• General Manufacturing: Used in various assemblies where a combination of a rounded aesthetic head and secure fastening is required.

Excellent Case: Securing Public Playground Equipment

A city parks department needed to address recurring vandalism and safety issues on public playgrounds. Critical components like access panels to equipment internals and signage were being tampered with using common tools, posing a safety risk to children and leading to frequent, costly repairs.

Solution: The department replaced all standard Phillips-head screws on access panels and information plaques with stainless steel triangle round head machine screws. The rounded heads provided a smooth, snag-free surface safe for children, while the stainless steel material offered excellent weather resistance for outdoor use. Most importantly, the triangular drive recess made the screws impossible to remove without the special matching tool.

Outcome: Unauthorized tampering was effectively eliminated. Maintenance crews, equipped with the correct triangular driver bits, could still perform necessary inspections and repairs efficiently. This single change significantly reduced maintenance costs, improved equipment uptime, and enhanced long-term safety for the playground, ensuring a more secure and durable public facility.
