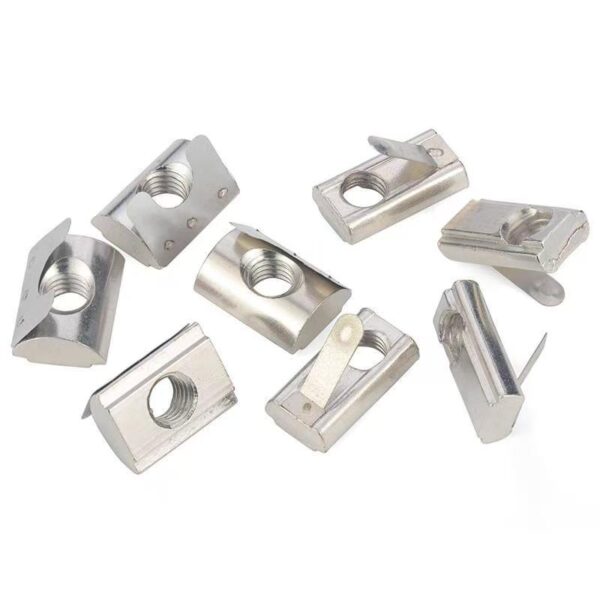

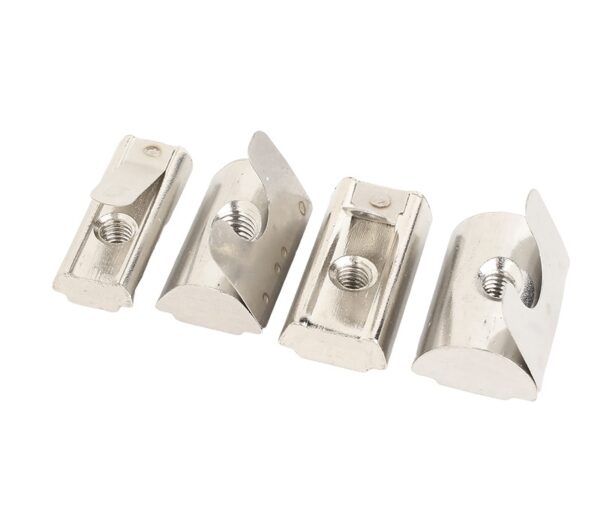

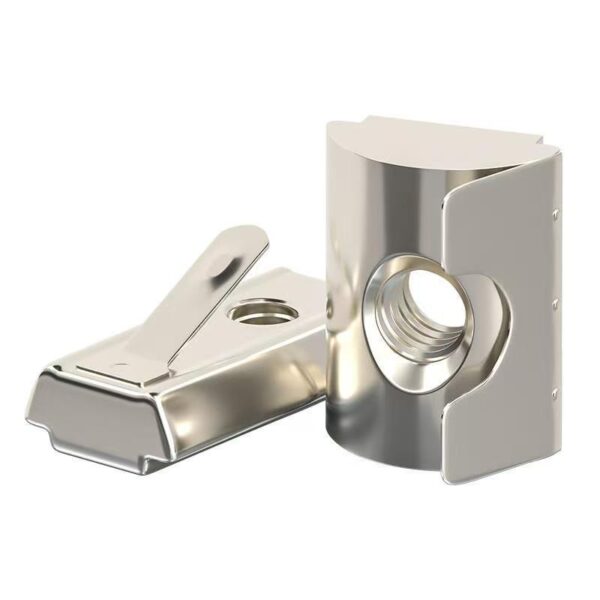

Non Standard Roll-in T Nut With Spring Leaf High Quality Shrapnel Nut for Aluminum Profile

A roll-in T nut is a specialized fastener designed for use with T-slot aluminum extrusion profiles, which are commonly used in modular framing systems, machine building, and industrial structures. Unlike standard T nuts that must be inserted from the end of a profile, roll-in T nuts feature a spring-loaded mechanism that allows them to be inserted directly into the T-slot from any point along the profile’s length. This spring component holds the nut securely in place within the slot, enabling easy positioning and repositioning without disassembling the entire structure. The nut is simply rolled or slid into the slot, rotated to engage the spring mechanism, and then tightened with a mating bolt to create a strong, adjustable connection point.

Materials

• Carbon Steel: The most common material, offering high hardness and strength for demanding industrial applications.

• Stainless Steel: Provides excellent corrosion resistance for harsh environments, outdoor use, or hygiene-sensitive areas.

• Steel: Many manufacturers specify steel construction with protective coatings for enhanced performance.

Surface Treatments

• Zinc Plating: A standard finish providing good corrosion resistance with a bright appearance in clear, yellow, or black variations.

• Nickel Plating: Offers enhanced corrosion protection with a smooth, attractive silver finish.

• Black Zinc: Provides corrosion resistance with a distinctive black finish for aesthetic or anti-reflective purposes.

• Passivation: Chemical treatment for stainless steel that maximizes natural corrosion resistance.

• Galvanized Steel: Robust protection for demanding environments.

Specifications

• Thread Sizes: Available in metric (M4, M5, M6, M8) and imperial (10-32, 1/4-20) threads.

• Profile Compatibility: Designed for specific T-slot sizes matching common aluminum extrusion series.

• Spring Mechanisms: Various designs including spring-loaded balls, spring leaves, rubber friction nubs, and set screws.

• Dimensions: Length, width, and thickness vary according to profile series and thread size.

• Load Capacity: Engineered to withstand significant shear and tensile forces in structural applications.

Application Fields

• CNC Machinery: Used in routers, plasma cutters, laser cutters, and 3D printers for frames and component attachment.

• Industrial Automation: Essential for machine guards, workstations, conveyor systems, and robotic cells.

• Aluminum Framing Systems: The primary application for creating structural frames, enclosures, and workbenches.

• Robotics Projects: Employed in custom robot frames and experimental setups requiring frequent repositioning.

• Exhibition Displays: Used in modular systems needing quick assembly and reconfiguration.

• Laboratory Equipment: Ideal for adjustable test fixtures, optical benches, and prototyping platforms.

Excellent Case: Adjustable Machine Guard Enclosure

A technician builds a safety enclosure for a CNC router using T-slot aluminum extrusion. Roll-in T nuts with spring-ball mechanisms are inserted directly into the slots at exact positions where panel brackets are needed. When panels require realignment for better machine access, the nuts are loosened, slid to new positions, and retightened without frame disassembly. This adjustability saves hours of labor during machine modifications.
