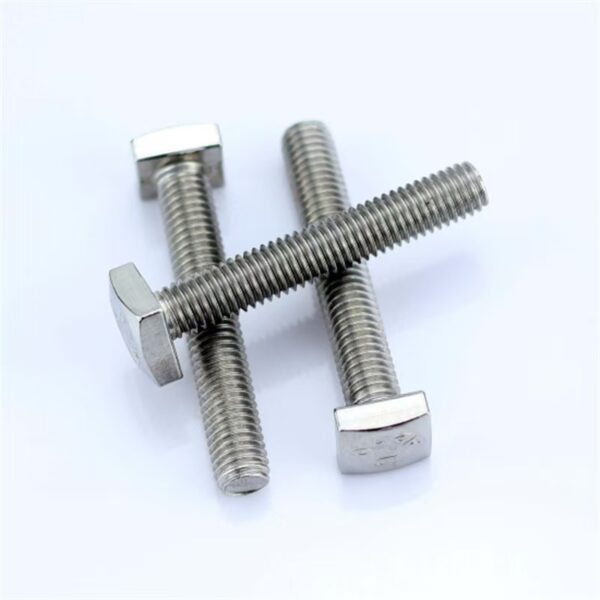

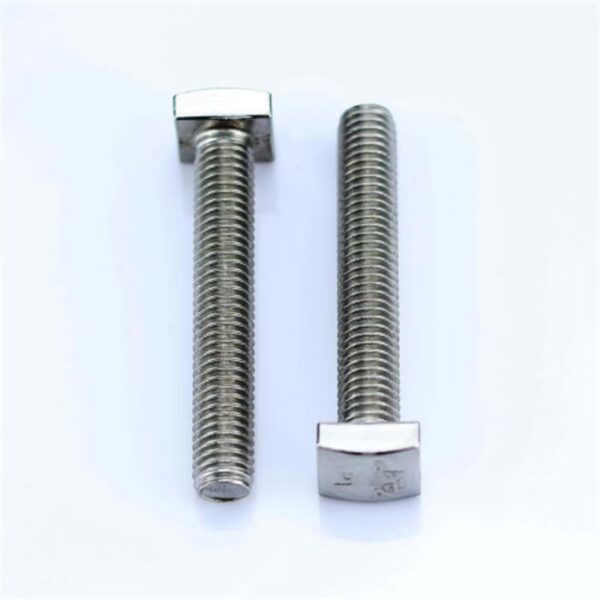

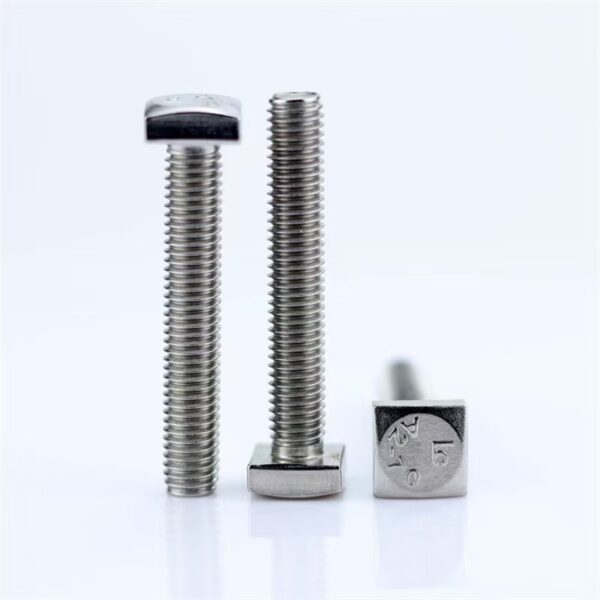

ASTM A193 B8M Stainless Steel Square Head Bolts Corrosion resistance Damp proof

Description

What are Square Head Bolts?

Square head bolts feature a four-sided head design that delivers maximum wrench grip and prevents tool slippage under high torque. Common reference standards include ASME B18.2.1 (inch series) and DIN 479 (metric series) [verify]. Unlike hex head bolts, the square configuration provides four flat contact surfaces, enabling positive engagement in tight spaces and resisting rounding during installation or removal.

Material & Grade

• Carbon Steel: Property classes 4.8 (400 MPa tensile), 8.8 (800 MPa tensile), and 10.9 (1040 MPa tensile) [verify] deliver increasing load capacity for structural and heavy machinery applications.

• Stainless Steel: A2-70 (70,000 psi tensile, equivalent to 304 grade) offers general corrosion resistance; A4-80 (80,000 psi tensile, equivalent to 316 grade) provides enhanced resistance to marine and chemical environments [verify].

• Alloy Steel: Grade B7 chromium-molybdenum alloy [verify] meets high-temperature and high-pressure requirements for pressure vessels and industrial piping.

Surface Finishes

• Zinc Plated: Delivers 48+ hours [verify] salt spray protection. First choice for general industrial indoor applications balancing cost and corrosion resistance.

• Hot-Dip Galvanized: Provides thick zinc coating for outdoor construction and utility applications. Resists corrosion in harsh environments without hydrogen embrittlement risk.

• Black Oxide: Offers cosmetic dark finish with minimal corrosion protection. Spec for automotive and tooling applications where oil film supplements protection.

• Mechanical Galvanizing: Applies zinc coating mechanically, eliminating hydrogen embrittlement risk entirely. Ideal for high-strength alloy steel fasteners.

• Plain (Uncoated): Use with thread-locking compounds or specify for post-plating assemblies.

Specification Parameters

• Diameter: M6 through M36 metric; 1/4-inch through 1-1/2-inch imperial

• Length: 12mm to 300mm metric; 1/2-inch through 12-inch imperial

• Thread: Coarse thread standard (UNC/ISO coarse); fine thread available

• Head Configuration: Square head with flat bearing surface; square neck option for timber applications (DIN 479)

• Drive Type: Wrench fit over square head; no drive recess required

Vertical Application Scenarios

Railroad Track Maintenance: Square head bolts secure rail joints and tie plates where vibration resistance matters. The square head seats into recessed pockets, preventing rotation during nut tightening and eliminating the need for backup wrenches.

Heavy Equipment Mounting: Construction machinery uses square head bolts for engine mounts and gearbox attachments. The four-sided grip allows mechanics to apply higher torque in confined engine compartments without socket slippage.

Historical Restoration: Period-authentic structures require square head bolts to match original hardware specifications. Museums, landmark buildings, and vintage equipment restoration projects specify these for visual accuracy and structural integrity.

Customer Case

Situation: A mining equipment manufacturer reported repeated fastener failures on vibrating screen decks. Standard hex head bolts loosened under continuous vibration, requiring daily retorquing and causing unplanned downtime.

Task: Engineering required a fastening solution that maintained clamp load under high-frequency vibration while allowing easy field replacement during scheduled maintenance.

Action: Supplied M20 x 80mm square head bolts, property class 8.8, zinc-plated, with full threads. The square head seated into existing recessed pockets, preventing rotation during installation. Coarse threads provided maximum vibration resistance.

Result: The maintenance team reported 90% reduction in retorquing frequency. Downtime for fastener-related issues dropped significantly, and mechanics completed installations faster without needing two wrenches for each bolt.
