OEM Custom Superior Steel Spacer Sleeve Zinc Plated Precision Spacer

توضیحات

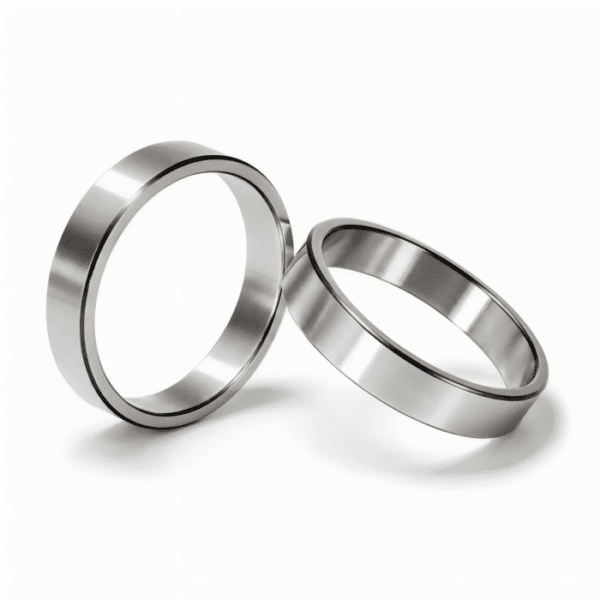

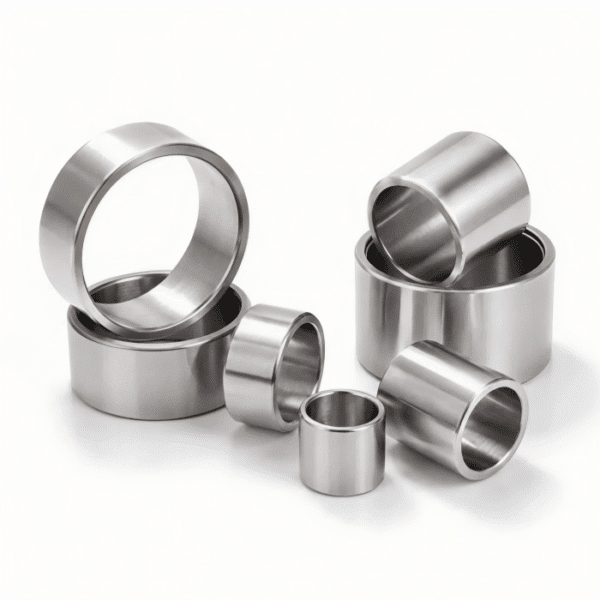

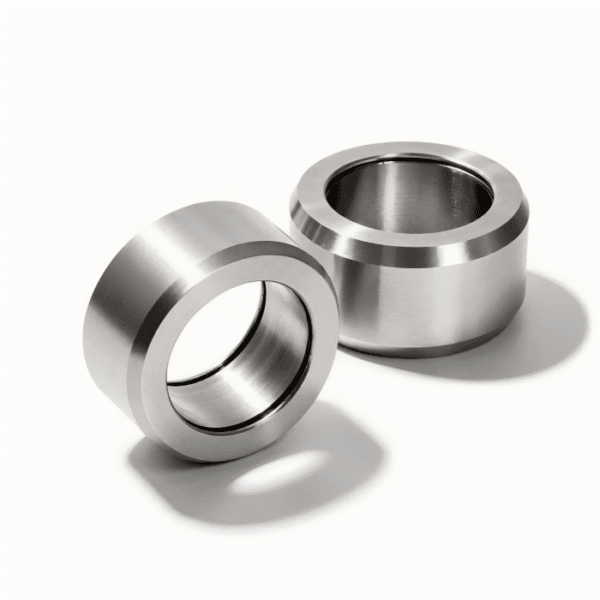

What Is a Steel Spacer Sleeve?

A steel spacer sleeve is a cylindrical metal component with a precise length, inner diameter, and outer diameter, designed to maintain a predetermined distance between two components in a mechanical assembly. Unlike standard washers that have looser tolerances, this sleeve is precision machined to tight length tolerances, often up to ±0.01mm. These components are also known as distance washers, standoffs, or spacing tubes, and are available in both hardened and unhardened conditions.

A spacer sleeve can serve multiple functions: maintaining precise axial spacing between components, aligning bearings and shafts in housings, providing a wear-resistant bearing surface, and acting as a protective sleeve for bolts to prevent damage to mating parts.

How a Steel Spacer Sleeve Works:

It operates on the principle of precise axial positioning. When placed between two components, the spacer sleeve maintains a fixed distance determined by its length. This is critical for applications where bearings must be properly positioned, where compression springs need specific preload, or where multiple components must be spaced identically.

It can be used as a bearing sleeve for rolling bearings, providing a precisely machined interface between the bearing and the housing. In high-wear applications, hardened steel spacers with HRC 58-62 offer excellent wear resistance and dimensional stability over long service life.

Why Choose Custom CNC Machined Steel Spacer Sleeves?

Off-the-shelf steel spacer sleeves may not always fit your specific application. Standard inner diameters, outer diameters, or lengths may not align with your assembly requirements. Custom CNC machined versions provide the perfect solution for applications demanding precise fitment and optimal performance.

With CNC machining, every aspect of the sleeve can be customized to your exact specifications. The inner diameter can be precisely matched to your shaft size. The outer diameter can be optimized for your housing. The length can be adjusted for your spacing requirement. The material can be chosen from carbon steel, alloy steel, or stainless steel. Hardness can be specified from unhardened to 60 HRC.

Our CNC machining process ensures that each sleeve achieves tight tolerances, with excellent surface finish and consistent quality across every part, from prototypes to high-volume production runs.

Materials for Custom Steel Spacer Sleeves:

The choice of material for it depends on load requirements, wear resistance needs, and environmental conditions.

Carbon Steel is the most common material for steel spacer sleeves. Grades such as 1045 and 1215 offer good machinability and strength. Suitable for general industrial applications.

Alloy Steel provides higher strength and wear resistance. Grades like 4140 and 8620 can be heat treated to achieve 50-60 HRC hardness. Suitable for high-load and high-wear applications.

Stainless Steel offers corrosion resistance for marine, food processing, and outdoor applications. Grades 303, 304, and 316 are common for spacer sleeves in corrosive environments.

Tool Steel provides maximum hardness for extreme wear applications.

Applications of Custom Steel Spacer Sleeves:

Robotics and Automation:

These products provide precise spacing in robotic joints, actuators, and linear guides. Hardened sleeves offer wear resistance for continuous operation.

CNC Machinery:

They align bearings in spindles, position cutting tools, and maintain precise distances in machine assemblies.

Automotive:

They are used in transmissions, suspensions, and engine components where precise spacing is critical.

Industrial Equipment:

They support shafts, align bearings in housings, and provide spacing in pumps, compressors, and conveyors.

Electronics and Appliances:

Small steel spacer sleeves (standoffs) are used to mount circuit boards and components in electronic devices.

Our CNC Machining Capabilities:

Our facility is equipped with advanced CNC turning and grinding centers capable of them to the highest standards. We offer precision OD/ID machining, surface finishing, heat treatment, and quality inspection. We support prototype quantities as low as one piece and production runs of thousands.

Frequently Asked Questions:

Q: What is a steel spacer sleeve used for?

A: It maintains precise axial spacing between components, aligns bearings and shafts, and provides wear-resistant bearing surfaces in mechanical assemblies.

Q: What materials are steel spacer sleeves made from?

A: They are typically made from carbon steel, alloy steel (4140, 8620), or stainless steel (303, 304, 316). Material selection depends on load, wear, and environment.

Q: What is the difference between hardened and unhardened spacer sleeves?

A: Hardened spacer sleeves offer superior wear resistance and dimensional stability under high loads, while unhardened sleeves are easier to machine and suitable for light to moderate applications.

Q: What tolerances can you hold?

A: We hold tight tolerances on all critical dimensions. Precision class spacer sleeves can achieve length tolerances up to ±0.01 mm.

Q: Can you match an existing spacer sleeve?

A: Yes, we can replicate any standard or custom steel spacer sleeve. Provide your specifications or a sample for exact duplication.

Conclusion:

It is a critical component for precise spacing, bearing alignment, and wear resistance in mechanical assemblies across robotics, CNC, automotive, and industrial applications. When off-the-shelf options do not meet your needs, custom CNC machined steel spacer sleeves provide the perfect solution. With our precision machining capabilities, material options, and commitment to quality, we deliver sleeves that fit perfectly and perform reliably.
