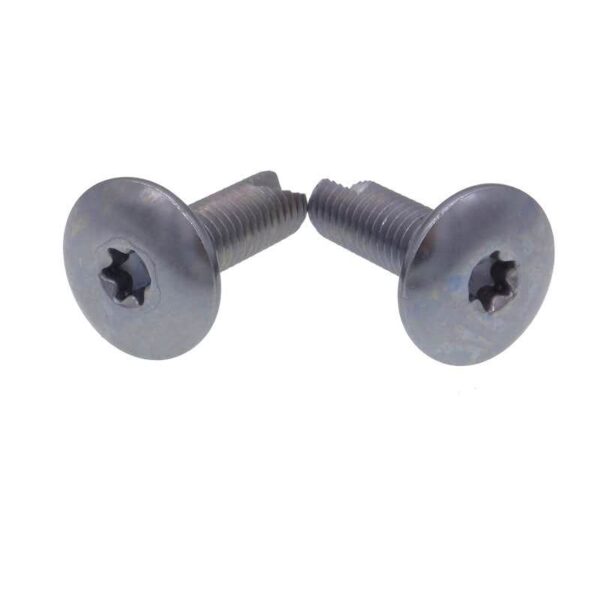

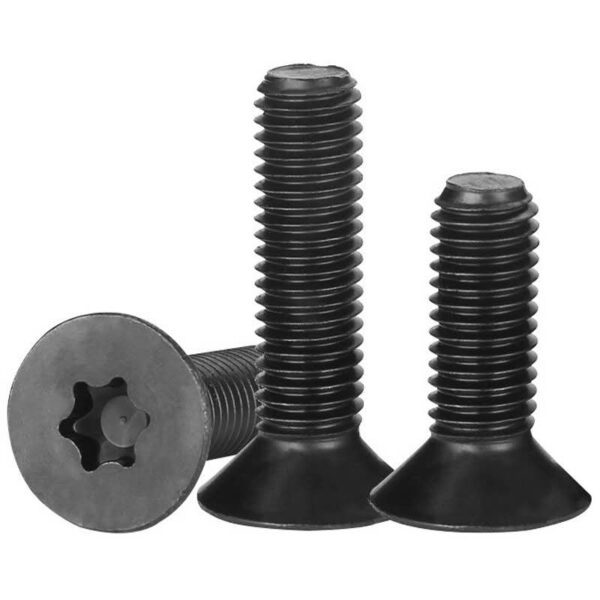

What are Thread Cutting Machine Screws?

Thread Cutting Machine Screws are a specific type of tapping screw designed to cut its own mating internal thread into a pre-drilled or pre-punched hole as it is driven in . Unlike thread-forming screws, which displace material, thread cutting screws have an interrupted thread design with cutting edges and chip cavities (flutes) that remove material from the wall of the hole, creating a precise machine screw thread .

The key distinction from standard machine screws is that thread cutting machine screws do not require a pre-tapped nut or threaded hole. They create threads themselves by cutting away material, making them ideal for use in materials where forming threads is difficult or where a machine screw thread is desired for field replacement .

Common types include:

• Type 1: A single-flute design for general-purpose applications

• Type 23: Fine thread series with maximum thread cutting area and excellent chip clearing

• Type 25: Similar to Type 23 but with coarse threads, designed for plastics and soft materials

• Type F: Features multiple cutting edges and chip cavities, suitable for heavy gauge metals and castings

• Type 17: Specialized for wood with a fluted point to capture chips

Material Specifications

Thread cutting machine screws are manufactured from various materials depending on the application requirements and the hardness of the material to be fastened:

Surface Finishes

Surface treatments enhance corrosion resistance, lubricity during driving, and appearance:

• Plain/Uncoated: As-manufactured finish, may be oiled to prevent rust during storage

• Zinc Plated (Clear/Blue/Yellow): Electroplated zinc coating for corrosion resistance; various colors indicate different chromate conversion coatings

• Black Oxide: A black conversion coating providing mild corrosion resistance and a sleek appearance

• Phosphate Coating: Often with oil, provides good corrosion resistance and lubricity for driving

• Cadmium Plating: Excellent corrosion resistance, historically used in aerospace (now restricted due to environmental concerns)

• Dacromet®/Geomet®: Chrome-free, zinc-aluminum flake coatings for superior corrosion protection

• PTFE/Teflon Coating: Provides lubricity and chemical resistance

• Passivation: For stainless steel, removes free iron and enhances natural corrosion resistance

Specifications

Thread cutting machine screws are defined by several key parameters:

• Thread Types:

  • Machine Screw Threads: Unified (UNC/UNF) or Metric (coarse/fine) threads

  • Tapping Screw Threads: Types A, AB, B (forming) vs. Types 1, 17, 23, 25, F (cutting)

• Point Types:

  • Type 1 Point: Single flute for general use

  • Type 17 Point: Long sharp point fluted for wood

  • Type 23 Point: Fine thread with cutting area and chip clearing

  • Type 25 Point: Coarse thread for plastics

  • Type F Point: Blunt tapered point with multi-cutting edges

• Drive Types:

  • Slotted, Phillips, Pozidriv, Hex, Torx, Square, Combination drives

• Head Styles:

  • Pan, Round, Truss, Flat (Countersunk), Oval, Hex, Hex Washer

• Size Range:

  • Metric: Typically M2 to M12

  • Imperial: #0 to 1/2″ and larger

• Length: Various lengths depending on application requirements

• Hardness: Typically case-hardened to ensure cutting edges remain sharp during installation

Application Fields

Thread cutting machine screws are used in applications where:

1. Metals Too Hard for Forming: In materials like heavy gauge sheet metal, die castings, or stainless steel where thread forming would require excessive torque or cause damage

2. Field Replacement Required: They create standard machine screw threads that allow replacement with standard machine screws in the field

3. Material Variability: In materials like cast iron, brass, bronze, and plastics where chip clearing is beneficial

4. Specific Industry Applications:

   • Automotive: Body panels, brackets, trim attachment

   • Electronics: Mounting components in chassis and enclosures

   • Appliances: Assembly of white goods and consumer electronics

   • Furniture: Knock-down fittings and assembly hardware

   • Plastics: Type 25 screws specifically for plastic components

   • Die Castings: Aluminum, zinc, and lead alloy components

An Excellent Case: Precision Electronics Enclosure Assembly

Scenario:
A manufacturer of high-end test and measurement equipment is designing an aluminum enclosure for a sensitive oscilloscope. The enclosure consists of a die-cast aluminum base and a sheet metal cover that must be securely fastened while allowing occasional access for calibration and service.

The Challenge:
The die-cast aluminum base has pre-drilled mounting holes. Using standard machine screws would require a secondary tapping operation (increasing cost and cycle time). Using thread-forming screws in the die-cast aluminum could cause stress risers or cracking due to the material’s relatively low ductility. The assembly also needs to withstand vibration during shipping and field use without loosening.

Why Thread Cutting Machine Screws are the Perfect Solution:

The design engineer specifies Type F Thread Cutting Machine Screws for the assembly.

1. Elimination of Secondary Operations:

   • The Type F screws are driven directly into the as-cast holes in the aluminum base. The multiple cutting edges cleanly cut a precise machine screw thread into the hole wall .

   • This eliminates the need for a separate tapping operation, reducing manufacturing time and cost while maintaining thread quality.

2. Superior Thread Quality in Problematic Materials:

   • Unlike thread-forming screws that displace material (which can cause stress in die castings), the Type F screw cuts chips that are captured in its chip cavities .

   • The result is a clean, precise machine screw thread without the risk of cracking the casting or creating raised material around the hole.

3. Serviceability and Field Replacement:

   • Because the Type F screw creates a standard machine screw thread, if the original screw is lost or damaged during field service, a standard off-the-shelf machine screw of the same size can be used as a replacement .

   • This is critical for test equipment that may be serviced in remote locations or by end-users who may not have access to specialty fasteners.

4. Material Versatility:

   • The same Type F screw design works perfectly in the die-cast aluminum base while also providing excellent thread engagement in the sheet metal cover .

   • The screws can be finished with a clear zinc plating that matches the enclosure’s aesthetic while providing corrosion resistance.

Result:
By specifying Type F Thread Cutting Machine Screws, the manufacturer achieves a clean, professional assembly that eliminates secondary tapping operations, provides reliable vibration-resistant joints, and allows for easy field service with standard hardware. The screws perform consistently across both the die-cast base and sheet metal cover, simplifying inventory and assembly procedures. The solution reduces manufacturing costs while improving product quality and serviceability.
