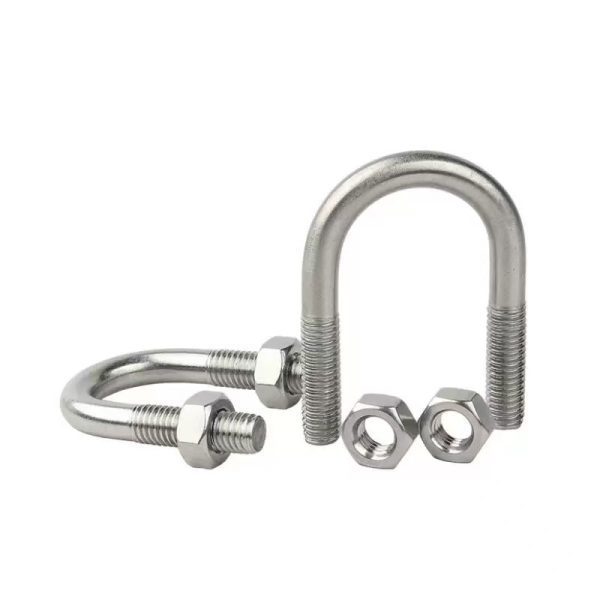

Custom Heavy Duty U Bolts For Trailer Linkage Parts Heavy Duty U Bolt

Mô tả

Heavy Duty U Bolts are robust, U shaped fasteners designed to secure pipes, tubes, or structural components under high-stress conditions. Heavy Duty U Bolts feature threaded arms for adjustable clamping force and are widely used in industries requiring exceptional load-bearing capacity, vibration resistance, and durability.

Specifications of Heavy Duty U Bolts

1. Material

• Carbon Steel (Grade 4.8/8.8/10.9): Economical and strong for general applications.

• Stainless Steel (304/316): Corrosion-resistant for marine or chemical environments.

• Alloy Steel (AISI 4140): Heat-treated for extreme tensile strength (e.g., mining equipment).

2. Surface Treatment

• Hot-Dip Galvanized: Zinc coating for outdoor/rust-prone environments (e.g., bridges).

• Electro-Galvanized: Thinner zinc layer for moderate corrosion protection.

• Powder-Coated: Aesthetic finish with added abrasion resistance (e.g., architectural uses).

• Plain (Self-Colored): No coating, typically for indoor or temporary applications.

3. Common Specifications

• Thread Standards: Metric (M6–M36), UNC/UNF, or custom threads.

• Bend Radius: 1× to 3× the bolt diameter (e.g., 12mm bolt → 12–36mm radius).

• Load Capacity: Rated for 5,000–50,000 lbs (varies by material/size).

• Standards: ASTM A153, DIN 3570, or ISO 4032.

4. Applications of Heavy Duty U Bolts

• Construction: Steel beam clamping, scaffolding, and pipeline supports.

• Transportation: Truck leaf spring mounting, exhaust system securing.

• Marine: Deck fittings, buoy anchoring, and dock hardware.

• Energy: Solar panel racks and wind turbine structural ties.

Excellent Case: Securing High Pressure Hydraulic Pipelines in Oil Rigs

Challenge:
An offshore oil rig needed to prevent hydraulic pipeline failures caused by constant vibration and saltwater corrosion. Traditional clamps loosened over time, risking leaks.

Solution:

• Installed 316 stainless steel U-bolts (M24 size, hot-dip galvanized) with nylon-lock nuts.

• Key Features:

  • Corrosion Resistance: Withstood saltwater exposure for 10+ years.

  • Vibration Damping: Locking nuts eliminated loosening under 200+ G-force shocks.

  • Easy Maintenance: Quick disassembly for pipeline inspections.

Result:

• Zero pipeline displacements reported over 5 years, reducing downtime by 40%.

Key Advantages Summary

✔ Extreme Durability – Handles dynamic loads and harsh environments.
✔ Customizable – Adjustable bend radius, thread length, and coatings.
✔ Safety Compliance – Meets ASTM/ISO standards for critical infrastructure.
