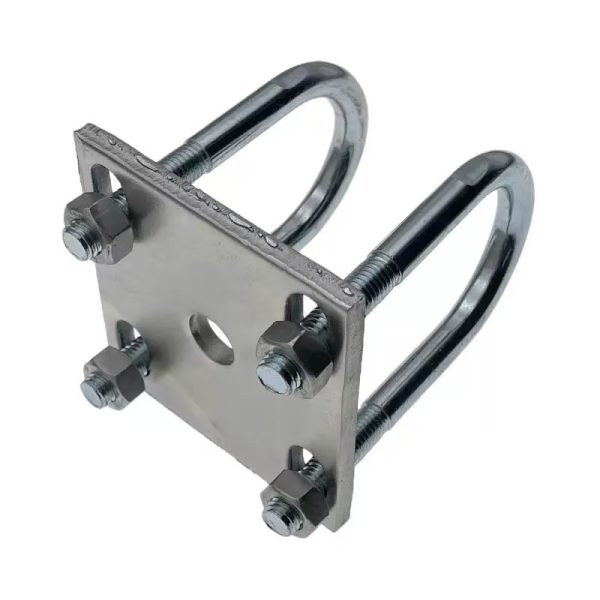

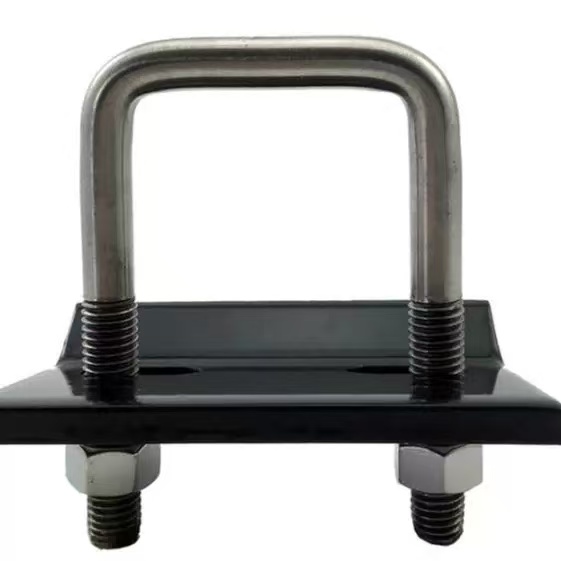

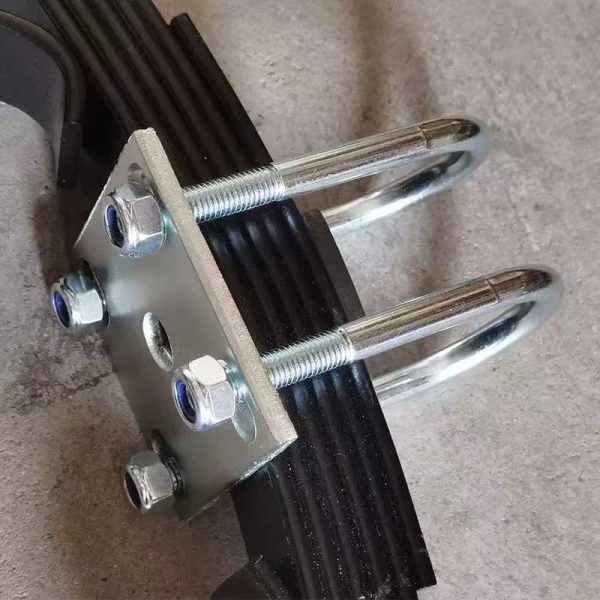

Trailer Axle U Bolt Kit with Galvanized Plates Large U Bolt

Mô tả

What is an Axle U Bolt?

An Axle U Bolt is a U-shaped fastener with threaded ends, designed to secure the axle to the leaf spring or suspension system in vehicles. It ensures stability, load distribution, and proper alignment of the axle, making it critical for heavy-duty and off-road applications.

Key Features of Axle U Bolts

1. Materials

• Carbon Steel (Most common, cost-effective, and strong)

• Alloy Steel (Higher tensile strength for heavy loads, e.g., Grade 8 or 10.9)

• Stainless Steel (Corrosion-resistant, ideal for marine or harsh environments)

2. Surface Treatments

• Zinc Plating (Basic rust protection, economical)

• Hot-Dip Galvanizing (Thick coating for extreme durability)

• Black Oxide (Aesthetic finish with mild corrosion resistance)

3. Specifications

• Diameter: 8mm, 10mm, 12mm, 14mm, etc.

• Thread Pitch: Fine or coarse (e.g., M12x1.5, M14x2.0)

• Bend Radius: Matches axle tube diameter (e.g., 3-inch for trucks)

• Length: Customizable based on suspension thickness.

4. Applications

• Trucks & Trailers (Heavy-load axles)

• Off-Road Vehicles (Reinforced suspension for rough terrain)

• Agricultural Machinery (Tractors, harvesters)

• Industrial Equipment (Cranes, forklifts)

Excellent  Case: Off-Road Jeep Wrangler Upgrade

A Jeep Wrangler owner installed heavy-duty alloy steel U bolts (Grade 10.9, zinc-plated) during a suspension lift to accommodate larger 35-inch tires. The results:
✅ Secure Axle Alignment – No shifting during rock crawling.
✅ Corrosion Resistance – Withstood mud and water crossings.
✅ Increased Load Capacity – Handled added weight of aftermarket bumpers.
✅ Zero Failures – Even after 2 years of extreme off-roading.

This demonstrates how quality U bolts enhance durability in demanding conditions.
