Description

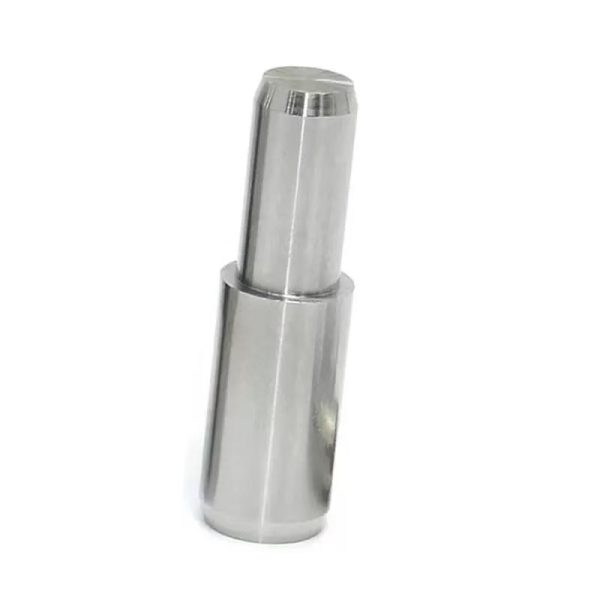

What Are Stepped Dowel Pins?

Stepped dowel pins are precision alignment fasteners with multiple diameters along their length, designed to provide hierarchical positioning in assemblies requiring tiered tolerances or multi-component alignment. Their segmented profile ensures secure fits in mismatched holes while preventing axial movement.

Stepped Dowel Pins: Specifications

1. Material

• Alloy Steel (4140): Heat-treated for high shear strength (e.g., automotive drivetrains).

• Stainless Steel (17-4PH): Corrosion-resistant for marine/chemical environments.

• Titanium (Grade 5): Lightweight yet robust for aerospace.

• Brass (C36000): Non-magnetic for electronics.

2. Surface Treatment

• Hard Chrome Plating: Wear resistance (up to 70 HRC).

• Black Oxide: Anti-galling and mild corrosion protection.

• Electropolishing (Stainless): Ultra-smooth finish for cleanrooms.

3. Common Specifications

• Diameter Steps: 2–3 tiers (e.g., Ø5mm→Ø8mm→Ø10mm).

• Length per Step: Customizable (typically 5–20mm per segment).

• Tolerance: ±0.005mm (precision-ground to ISO 286).

• Standards: DIN 6325, ASME B18.8.4.

4. Applications

• Automotive: Aligning transmission housings with multi-bore components.

• Robotics: Precise joint articulation in robotic arms.

• Medical Imaging: MRI machine component assembly (non-magnetic).

• Energy: Wind turbine gearbox alignment.

Excellent Case: High-Speed Packaging Machine

Challenge:
A food packaging line needed to align servo-driven cutting heads with print rollers across three stacked plates (each with different bore sizes). Traditional single-diameter pins caused misalignment and wear.

Solution:

• Deployed hardened 4140 steel stepped pins (Ø6mm→Ø8mm→Ø10mm):

  • Tiered Fit: Each step matched a plate’s bore diameter perfectly.

  • Zero Backlash: Eliminated 0.2mm axial play, reducing jams by 90%.

  • Hygienic Design: Electropolished finish resisted bacterial buildup.

Results:

• Increased machine uptime from 85% to 98%.

• Reduced alignment calibration time from 30 mins to 5 mins per shift.

• Achieved ISO 22000 hygiene compliance.

Key Advantages

✔ Multi-Diameter Precision – Solves mismatched hole alignment.
✔ Axial Stability – Steps act as built-in stops.
✔ Custom Configurations – Steps/lengths tailored to your stack-up.
