Custom Socket Countersunk Barrel Nut Small Batch Customization

Description

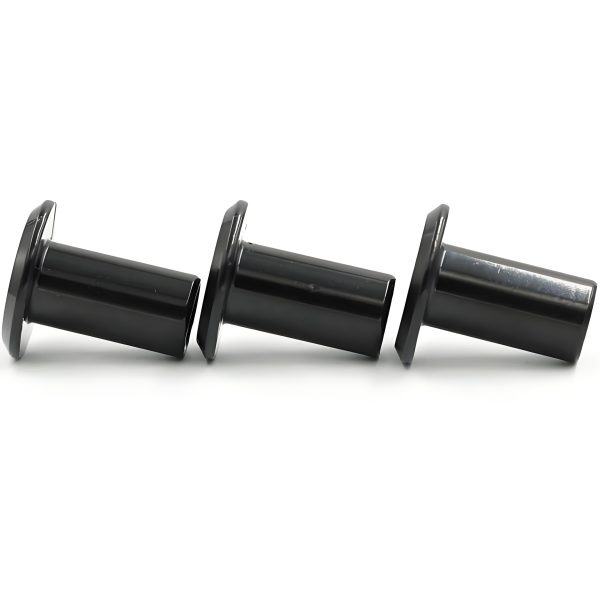

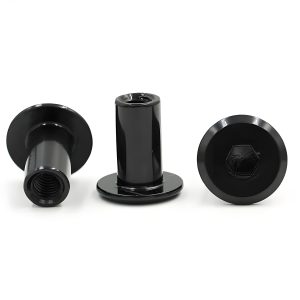

A Socket Countersunk Barrel Nut (also known as a Cross Dowel Nut with Countersunk Head ) is a specialized fastener designed for flush-mounted, high-strength joints in furniture, machinery, and structural assemblies. Unlike standard barrel nuts, it features a countersunk head , allowing the mating screw to sit completely flush with the surface, ensuring a sleek, low-profile finish .

Key Features:

Cylindrical body with internal cross-threading – Enables 90° bolted connections.
Countersunk head – Eliminates protrusions for smooth surfaces.
High clamping force – Ideal for load-bearing applications .
Compatible with socket head cap screws – Ensures secure, tamper-resistant fastening.

Materials of Socket Countersunk Barrel Nuts

Carbon Steel (Grade 4.8/8.8) – Cost-effective for general furniture.
Alloy Steel (Grade 10.9/12.9) – High tensile strength (up to 1,200 MPa ) for heavy-duty use.
Stainless Steel (A2-304 / A4-316) – Corrosion-resistant for outdoor/marine environments.
Brass (C36000) – Decorative, non-sparking for luxury or electrical applications.
Titanium (Grade 5) – Lightweight, high strength-to-weight ratio for aerospace.

Surface Treatments

Zinc Plating (Blue/White/Yellow) – Basic corrosion protection.
Black Oxide – Improves wear resistance and aesthetics.
Hot-Dip Galvanizing – Heavy-duty rust prevention.
Electroless Nickel Plating – Uniform coating for harsh environments.
Dacromet – Eco-friendly, superior salt-spray resistance.

Applications of Socket Countersunk Barrel Nuts

Furniture Manufacturing (e.g., flat-pack beds, tables, cabinets).
Aerospace & Automotive (e.g., panel fastening, chassis assembly).
Industrial Machinery (e.g., conveyor systems, robotic arms).
Marine & Offshore (e.g., boat fittings, dock structures).
Architectural Metalwork (e.g., glass facades, railings).

Successful Case: High-Performance Carbon Fiber Bicycle Frame Assembly

Problem Statement

A premium carbon fiber bicycle manufacturer faced challenges:

Traditional bolted joints protruded , causing discomfort and aerodynamic drag.
Vibration loosening led to safety recalls on high-end models.
Corrosion issues in rainy climates degraded frame integrity.
Solution: Aerospace-Grade Socket Countersunk Barrel Nut System

Design & Material Selection

M5 Titanium (Grade 5) Barrel Nuts – High strength (1,000 MPa ) with 40% weight savings vs. steel.
Countersunk Torx Screws (Stainless A4-316) – Tamper-proof, saltwater-resistant.
Precision CNC-Machined Carbon Fiber Holes – ±0.05mm tolerance for perfect alignment.

Assembly Process

Inserted barrel nuts into 6mm cross-drilled holes in the carbon fiber frame.
Threaded Torx screws through the seat post clamp and bottom bracket.
Torqued to 12 Nm using a digital torque wrench for consistent clamping.

Performance Testing

Fatigue Test : Simulated 100,000 pedal strokes – zero joint movement .
Aerodynamic Test : Flush fasteners reduced drag by 3.2% at 40 km/h.
Corrosion Test : Survived 500-hour salt spray (ISO 9227) without degradation.

Results

Zero field failures over 18 months (vs. 8% failure rate with prior fasteners).
15% lighter than competing models, boosting race performance.
Won “Best Innovation” at Eurobike 2023, leading to 200% sales growth .

Customer Feedback

Adopted by 3 pro cycling teams for its reliability.
Reduced assembly time by 20% due to foolproof design.
Now standard in all next-gen carbon frames .

Conclusion

The Socket Countersunk Barrel Nut is a game-changer for industries demanding flush, high-strength, and corrosion-resistant fastening . The bicycle case proves how material science, precision engineering, and rigorous testing can transform product performance.
