Custom Press Fit Nuts for Sheet Metal Flush Mount Press Fit Nut for Sheet Metal

Description

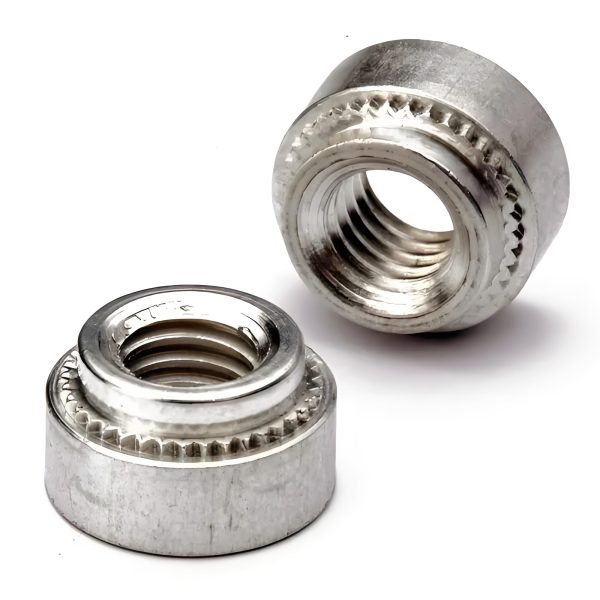

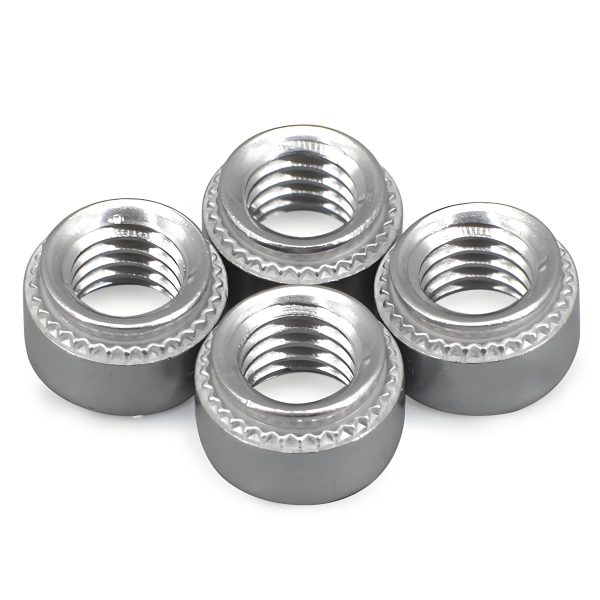

Press fit nuts (also called self-clinching nuts) are threaded fasteners designed to be permanently installed into sheet metal or other thin materials. They feature a knurled or serrated shank that, when pressed into a pre-punched hole, displaces the surrounding material and locks securely in place. Once installed, they provide a strong, reusable threaded insert that resists pull-out and rotation.

Key Features of Press Fit Nuts

1. Materials

• Carbon Steel – Standard strength, cost-effective

• Stainless Steel (304/316) – Corrosion-resistant for harsh environments

• Aluminum – Lightweight, good for aerospace & electronics

• Brass – Non-magnetic, corrosion-resistant, used in electrical applications

2. Surface Finishes

• Zinc Plating (Zn) – Basic corrosion protection

• Nickel Plating (Ni) – Improved wear & corrosion resistance

• Black Oxide – Aesthetic & mild rust resistance

• Passivated (Stainless Steel) – Enhances corrosion resistance

3. Common Sizes & Thread Types

• Thread Sizes: M2, M3, M4, M5, M6 (metric) / #4-40, #6-32, #8-32, #10-24, 1/4-20 (imperial)

• Flush or Protruding Head Styles – Depending on application needs

• Hex or Round Body – For different installation tools

4. Applications

• Electronics & PCB Mounting – Securing circuit boards

• Automotive Panels – Lightweight assembly without welding

• HVAC & Enclosures – Fastening sheet metal covers

• Aerospace & Defense – Vibration-resistant fastening

• Furniture & Appliances – Quick assembly with no backside access needed

Excellent Use Case: Automotive Electronics Control Unit (ECU) Mounting

Problem:
An automotive manufacturer needed a reliable way to mount an ECU (Engine Control Unit) inside a vehicle’s metal chassis. Traditional welding or screw-and-nut methods were time-consuming and required backside access, which was not feasible in tight spaces.

Solution:

• Self-clinching press-fit nuts (M5, Stainless Steel, Nickel Plated) were installed into the sheet metal panel.

• The ECU was then securely fastened using machine screws, ensuring vibration resistance.

• The flush installation prevented interference with other components.

Benefits:
✔ No welding required – Reduced assembly time & cost
✔ High pull-out resistance – Withstands vehicle vibrations
✔ Corrosion-resistant – Suitable for harsh automotive environments
✔ Reusable threads – Allowed for ECU servicing without nut replacement

Conclusion

Press fit nuts (self-clinching nuts) are essential for strong, permanent threaded inserts in thin materials. They are widely used in electronics, automotive, aerospace, and industrial applications where vibration resistance, space savings, and ease of assembly are critical.
