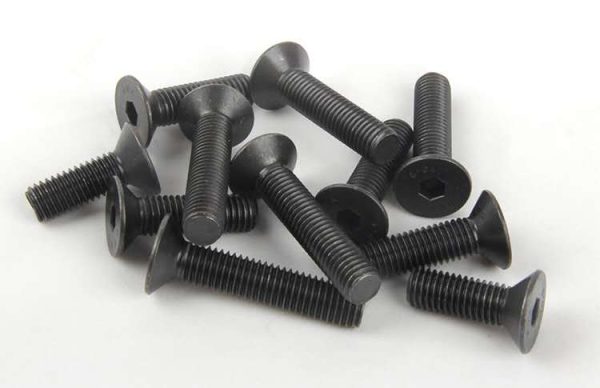

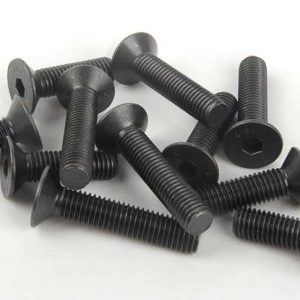

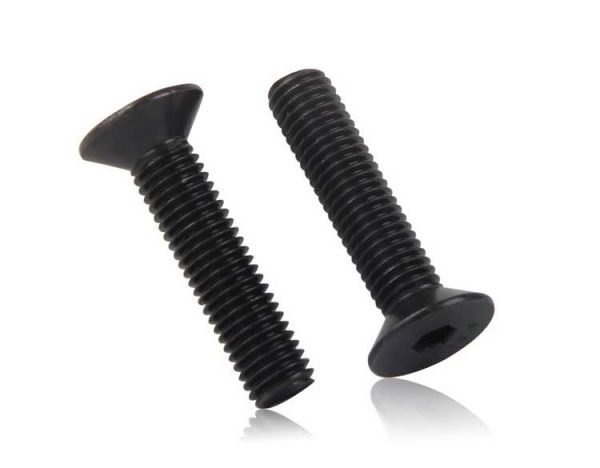

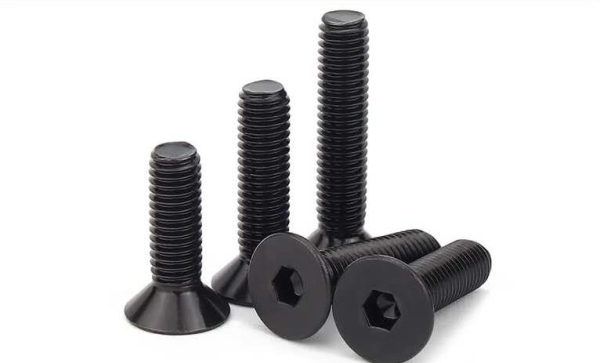

Stainless Steel 304 Flat Socket Head Cap Screw Black Zinc Plated for Furniture Connecting

Description

What is a Flat Socket Head Cap Screw?

A Flat Socket Head Cap Screw (also called a flat head socket cap screw or countersunk socket head screw) is a precision fastener designed with a flat, countersunk head that sits flush with the surface when installed. It features an internal hex (Allen) drive for secure tightening and a conical bearing surface that allows it to sit perfectly in a countersunk hole.

These screws are widely used in applications requiring a smooth, low-profile finish, high clamping force, and resistance to loosening under vibration. They are commonly found in machinery, automotive, aerospace, and electronics where space constraints and aerodynamics matter.

Specifications of Flat Socket Head Cap Screws

1. Material

Flat socket head cap screws are available in various materials to suit different mechanical and environmental needs:

• Stainless Steel (A2/AISI 304, A4/AISI 316) – Excellent corrosion resistance for marine and chemical environments.

• Alloy Steel (Grade 8.8, 10.9, 12.9) – High tensile strength for heavy-duty applications.

• Titanium (Grade 2, Grade 5) – Lightweight yet strong, ideal for aerospace and medical implants.

• Brass – Used in electrical and decorative applications where conductivity and aesthetics are important.

• Aluminum – Lightweight and corrosion-resistant for automotive and electronics.

2. Surface Finishes

Different coatings enhance durability, corrosion resistance, and appearance:

• Plain (Uncoated) – Standard finish for general-purpose use.

• Black Oxide – Improves corrosion resistance and reduces glare.

• Zinc Plated (Yellow/Blue/White Zinc) – Protects against rust in outdoor applications.

• Nickel Plated – Enhances wear resistance and provides a shiny finish.

• Dacromet (Geomet® Coating) – High corrosion resistance for automotive and industrial use.

• Anodized (For Aluminum/Titanium) – Improves hardness and color options.

3. Key Specifications

• Drive Type: Hex socket (Allen key) – Common sizes: 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm.

• Head Angle: 82° or 90° (matches standard countersunk holes).

• Thread Types: Metric (M2, M3, M4, M5, M6) or Imperial (#4-40, #6-32, #8-32, #10-24).

• Length Range: 4mm to 100mm (custom lengths available).

• Standards: DIN 7991, ISO 10642, ASME B18.3 (for precision engineering).

4. Applications

Flat socket head cap screws are used in industries where flush mounting, high strength, and vibration resistance are required:
✔ Aerospace & Aviation – Used in aircraft panels and engine components for a smooth aerodynamic surface.
✔ Automotive – Secures interior trim, engine covers, and brake systems without protruding.
✔ Machinery & Robotics – Provides a low-profile fastening solution for moving parts.
✔ Electronics & Gadgets – Ideal for laptops, smartphones, and PCB assemblies where space is limited.
✔ Medical Devices – Used in surgical instruments and implants due to biocompatible options (titanium).
✔ Furniture & Woodworking – Ensures a clean, flush finish in high-end cabinetry.

Excellent Case: High-Speed CNC Machine Tool Assembly

Challenge:

A manufacturer of precision CNC machining centers needed a fastener solution for securing aluminum housing panels without disrupting the machine’s smooth exterior. The screws had to:

• Remain flush to prevent interference with moving parts.

• Withstand high vibrations without loosening.

• Resist corrosion from coolant and metal shavings.

• Allow quick disassembly for maintenance.

Solution:

• Stainless Steel Flat Socket Head Cap Screws (M5 x 16mm, Black Oxide Coated) were selected because:

  • The countersunk head sat perfectly flush, eliminating snagging risks.

  • Stainless steel (A4-316) resisted coolant corrosion and prolonged lifespan.

  • Black oxide coating reduced friction during installation and prevented galling.

  • Hex socket drive allowed high torque application, ensuring a secure fit even under vibration.

Result:

✅ Sleek, interference-free surface improved machine safety and aesthetics.
✅ Zero loosening issues even after months of continuous operation.
✅ Reduced maintenance time due to easy Allen-key access.
✅ Long-term durability in a harsh machining environment.

Conclusion

Flat socket head cap screws are essential for applications demanding a smooth, flush finish with high strength. Their versatility in materials and coatings makes them suitable for industries ranging from aerospace to consumer electronics.

For high-performance machinery, automotive, and precision engineering, these screws provide reliability, corrosion resistance, and a professional finish.
