Durable Stepped Gasket with Asymmetric Layers for Misaligned Flange Sealing Solutions

What is a Stepped Gasket?

A stepped gasket is a specialized sealing component designed with multiple levels (steps) of varying thicknesses to accommodate uneven or multi-level mating surfaces. Unlike flat gaskets, stepped gaskets provide a custom-fit seal in applications where standard gaskets fail due to misalignment or pressure variations.

Key Features of Stepped Gaskets

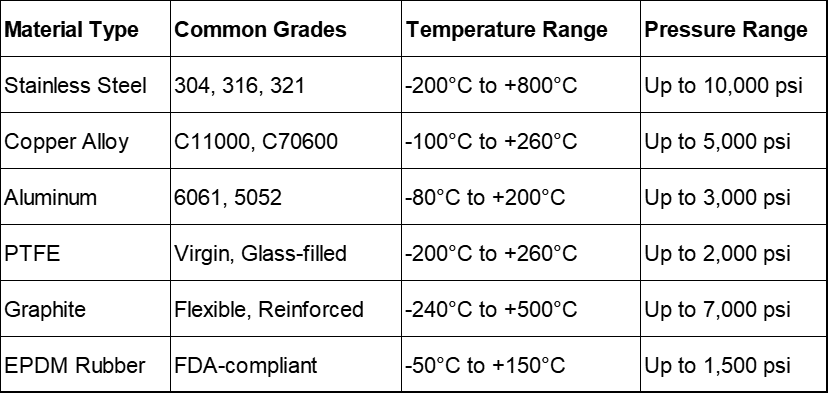

1. Materials
Stepped gaskets are made from various materials depending on application requirements:

Metallic :
Stainless Steel (304, 316) : High corrosion resistance for chemical/petrochemical industries.
Copper/Copper Alloys : Excellent thermal conductivity for heat exchangers and engines.
Aluminum : Lightweight with good thermal performance (e.g., automotive).
Titanium : Extreme temperature/pressure resistance (aerospace, marine).
Non-Metallic :
PTFE (Teflon) : Chemical inertness for aggressive fluids.
Rubber (NBR, EPDM) : Flexibility for low-pressure sealing.
Graphite : High-temperature stability (exhaust systems, flanges).

2. Surface Treatments
To enhance performance, stepped gaskets may undergo:

Electroplating (Zinc, Nickel, Silver) : Improves corrosion resistance.
Anodizing (Aluminum) : Hardens surface and prevents oxidation.
PTFE Coating : Reduces friction and chemical adhesion.
Laser Etching : Adds anti-slip micro-patterns for better grip.

3. Applications

Stepped gaskets are used where uneven surfaces or multi-level sealing is required:

Automotive : Cylinder heads, exhaust manifolds.
Oil & Gas : Flange connections in pipelines.
Aerospace : Jet engine components.
HVAC/Plumbing : Pump housings, valve assemblies.
Electronics : Heat sink sealing in high-power devices.
